The first Rubik’s Cube Prototypes

Over the years the Rubik’s Cube has evolved immensely. New types of puzzles from higher-order standard cubes such as the 4×4 or 5×5 to different shaped puzzles such as cuboids and pyramids have surfaced, all originating from the original Rubik’s Cube design. But where did the original Rubik’s Cube come from? How was the original 3×3 puzzle that has sold over 350 million units since its release originally developed? Here we will take a look at the first prototype of the original toy and how this paved the way for future versions of the same puzzle.

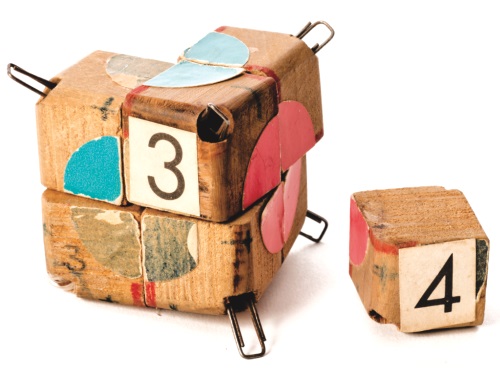

prototype beyond rubiks cube exhibition 2x2
The wooden prototype presented on the Beyond Rubik’s Cube exhibition

Rubik Erno wanted to create an object that seemed to defy the laws of possibility; he wanted a structure which, whilst staying held together, had movable independent parts that could be manipulated and have their positions changed. It is believed that the cube was also used to help explain three-dimensional objects to his then-students at the Academy of Applied Arts and Crafts in Budapest Hungary.

Original images such as the fairly unstable looking 2×2 puzzle above surfaced as Rubik’s first attempt at accomplishing his goal. The first types of cubes he created were simple wooden blocks that were held together with rubber bands and paperclips.

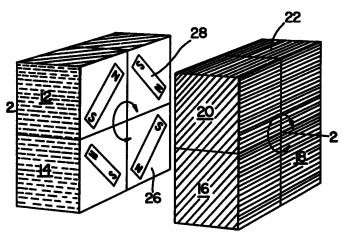

magnetic puzzle invention

In fact, another man by the name of Larry Nichols had already invented a 2×2 puzzle which had a much simpler design; magnets were used instead of rubber bands and paperclips. This meant that the puzzle could be separated into its 8 blocks quite easily, making it fairly unstable. The patent for this original 2×2 cube was filed in 1972, two years before Rubik invented his own 3×3.

These prototypes have only shown how a 2×2 puzzle could be constructed which, although still technically achieving Rubik’s goal, still didn’t quite allow all the pieces to move independently. The 2×2 didn’t need a core to control the movements of the separate pieces, so the puzzle was effectively 8 blocks moving around one another with fairly limited movement paths.

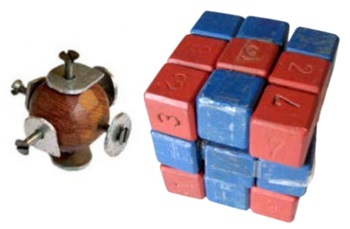

core mechanism

It was from here that Rubik began to work on a “core” for his inventions. This core enabled a larger order of puzzle to be made – The 3×3. Using a stable core, Rubik was able to construct a cube that could be moved and twisted fairly independently. The first prototype of a working 3×3 puzzle is shown in the image. Although his core design was fairly simple, it isn’t that much different from what is used today; screws attaching the centre pieces to the core (with added washers for easier turning).

The final Rubik’s Cube prototype was created in 1974. This then led to patents and, after signing with toy company Ideal, was sold in Hungary and then eventually worldwide in 1980. This prototype was a much smoother version of the chunkier original prototype, and the corners were cut (as the cube was fairly large, Rubik believed the corners made the puzzle bulkier than it needed to be).

first wooden Rubiks cube model

Very little was known about this cube until 2014, when this and all of Rubik’s original prototype models were made public in the Beyond Rubik’s Exhibition at the Liberty Science Centre, New Jersey. Here the prototypes received more attention and thus more was learnt about the version pictured. The white centres are believed to hide the screws, although this is not certain. Also, the dot stickers that appear on some pieces are believed to be from when Rubik tried to restore what he had made. This led to him realising what he had truly created – a puzzle that would be enjoyed by many future generations.

Read more about the history of the Rubik’s Cube!
